Split Low Temperature Endoscope
Ezon yog ib lub tuam txhab kev lag luam koom nrog hauv kev tsim kho, tsim khoom thiab muag khoom ntawm cov khoom siv endoscopes. Peb lub tuam txhab muaj ntau xyoo ntawm kev lag luam kev paub thiab kev siv zog, tuaj yeem muab cov neeg siv khoom zoo thiab cov kev pabcuam zoo.

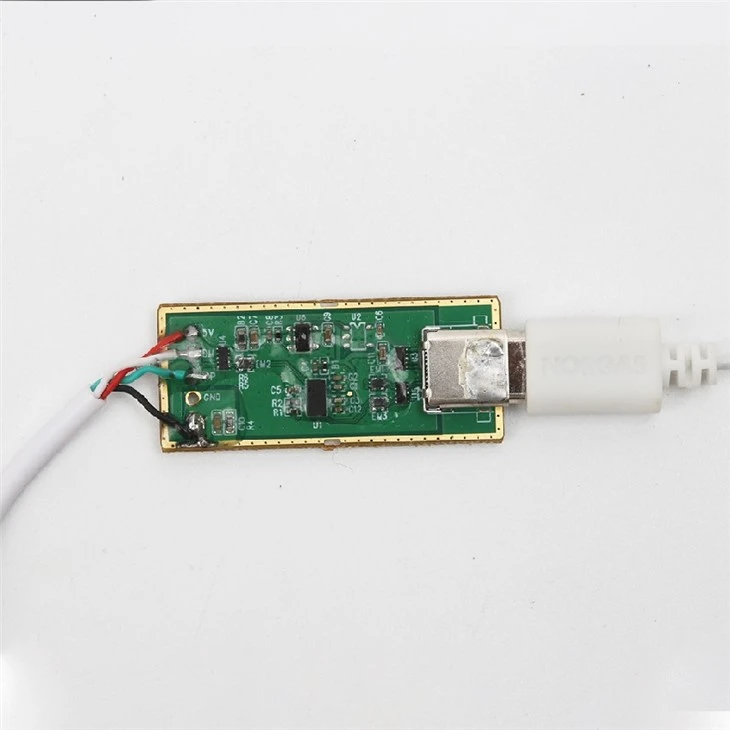

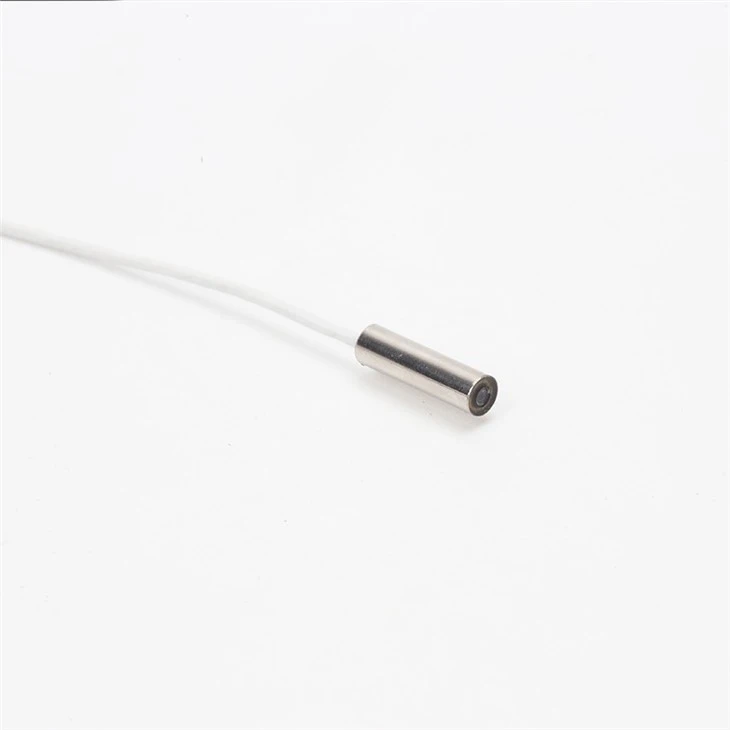

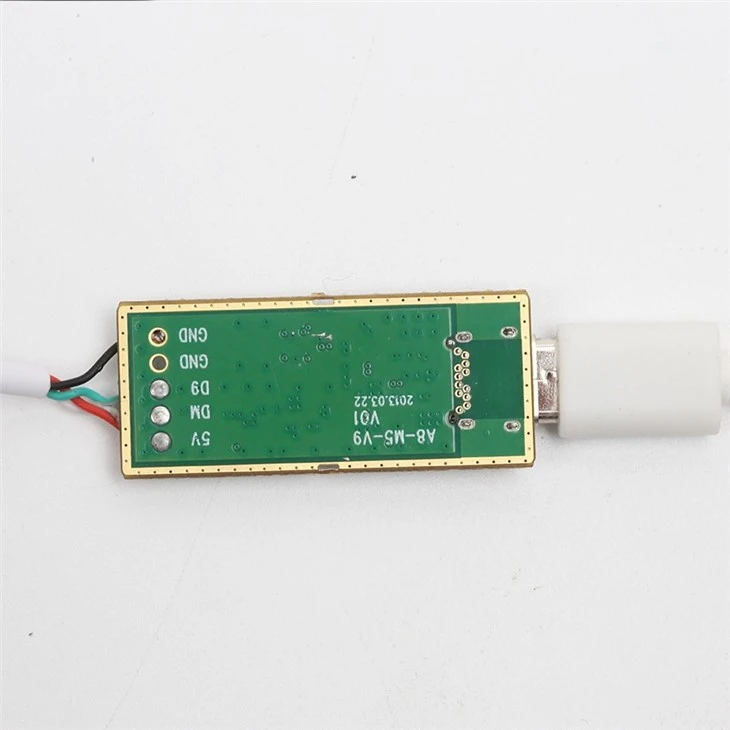

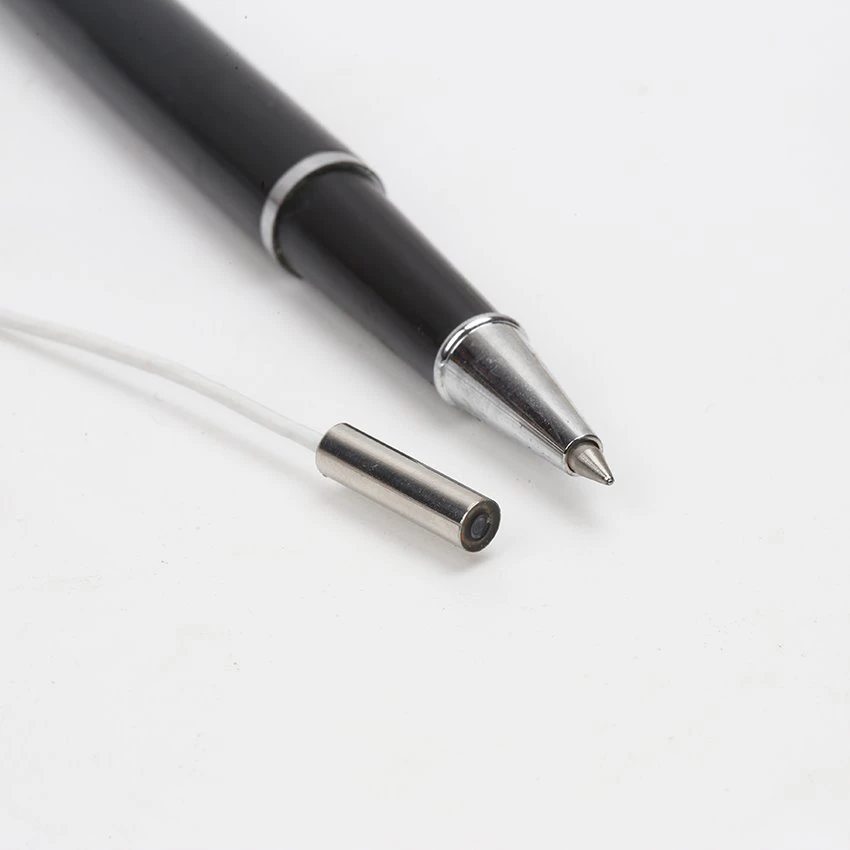

Qhov no yog qhov sib cais qis-kub endoscopic tshuaj xyuas daim iav, uas tau muab faib ua ob ntu: lub koob yees duab thiab lub rooj tsav xwm tswj. Txoj kab uas hla ntawm lub koob yees duab yog 4 hli, siv OV9734 sensor, 1MP, 88 qhov kev pom, thiab qhov tob ntawm thaj tsam yog 10-80mm. Muaj rau lub teeb ci LED sab nraum lub lens, uas haum rau lub teeb pom kev tsis zoo thiab pom kev hmo ntuj. Sab nraud ntawm lub lens yog tiv thaiv dej thiab tuaj yeem siv rau kev soj ntsuam hauv qab dej tob.
|
Module Tsis muaj. |
EZ-EN35S-S |
|
Hom Sensor |
OV 9734 (1/9") |
|
rhiab heev |
1. 0 V/(Lux·sec) |
|
Pixel Loj |
1.4 μ m x 1.4μ m |
|
Video Stream Fomat |
MJPG |
|
Max daws teeb meem |
1280X720 |
|
Cov duab hloov pauv siab tshaj plaws |
MJPG: 640X480 (30fps) 720X480 (30fps) 800X600 (30fps) 960X720 (30fps) 1280X720 (30fps) (default) |
|
S/N ratio |
44dB ib |
|
Dynamic Range |
68 dwb |
|
Min Lux |
0.03Lux |
|
Lens Kev Tsim Kho |
3P + IR |
|
FOV |
75 degree / 88 degree / 140 degree (yeem) |
|
Relative Illumination (Sensor) |
55 feem pua |
|
IR lim |
650 ± 10nm |
|
TV Distortion |
<-1% |
|
Ua hauj lwm voltage |
3.3V |
|
Ua hauj lwm tam sim no |
80mA ua |
Qhov loj tshaj plaws ntawm cov khoom no yog tias lub koob yees duab sib cais yog cais los ntawm lub rooj tsavxwm tswj, yog li nws yuav tsis tsim kom muaj cua sov ntau thaum siv. Nyob rau tib lub sijhawm, lub lens yog dej tsis qab thiab tuaj yeem nkag mus tob hauv qab dej lossis hauv qhov chaw ntub dej. Cov khoom no yog siv dav hauv kev kho mob endoscopy.
